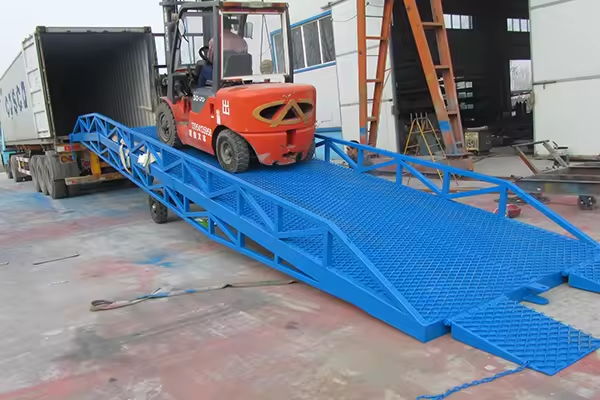

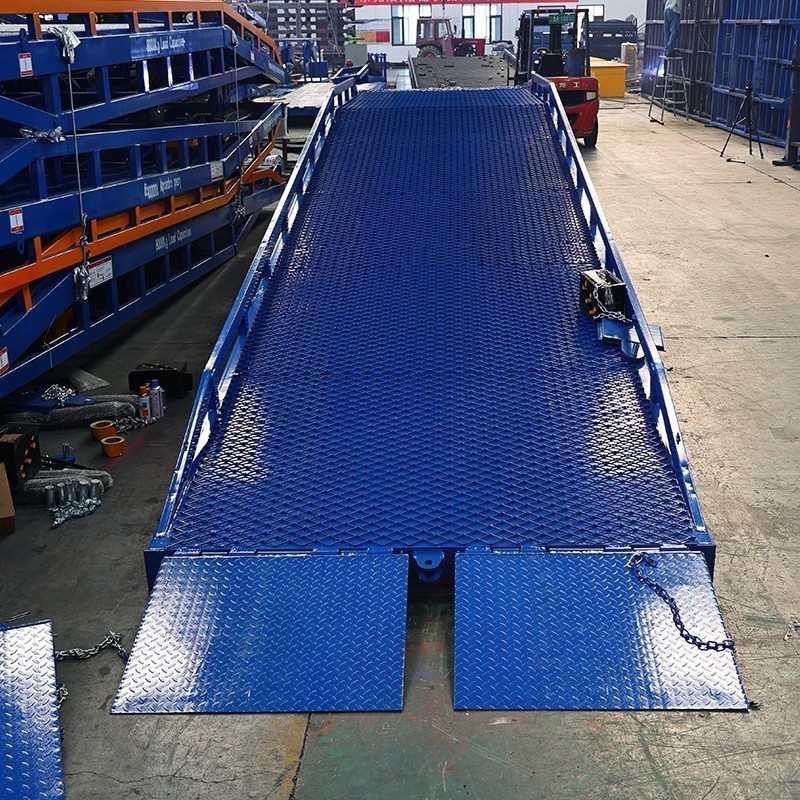

Mobile Yard Ramp

Product Description

Model	TP-MD-6	TP-MD-8	TP-MD-10	TP-MD-12	TP-MD-15	TP-MD-20
Overall Dimensions	11300×2100×1100 mm	11300×2100×1100 mm	11300×2100×1100 mm	11300×2200×1100 mm	11300×2200×1100 mm	11300×2200×1100 mm
Platform Length	Ramp 7150 mm, Flat 3000 mm	Same	Same	Same	Same	Same
Rear Lip Plate	Length 750 mm	Same	Same	Same	Same	Same
Rated Capacity	6 Tons	8 Tons	10 Tons	12 Tons	15 Tons	20 Tons
Height Adjustment Range	1100–1800 mm	1100–1800 mm	1100–1800 mm	1100–1800 mm	1100–1800 mm	1100–1800 mm
Welding & Coating	CO₂ welding + shot blasting + powder coating >100 μm	Same	Same	Same	Same	Same
Oil Tank Capacity	7 L	7 L	7 L	7 L	7 L	7 L
Tow Bar / Brake / Chains	Included	Included	Included	Included	Included	Included
Paint Color	Blue/Black/Green/Red	Blue/Black/Green/Red	Blue/Black/Green/Red	Blue/Black/Green/Red	Blue/Black/Green/Red	Blue/Black/Green/Red
Net Weight	approx. 2.3 tons	approx. 2.5 tons	approx. 2.6 tons	approx. 3.3 tons	approx. 4.0 tons	approx. 4.7 tons
40HQ Loading Qty	5 units	5 units	5 units	4 units	4 units	4 units
